Solar Array Top Cap for 2" Pipe (2 3/8" OD)

Array top cap · Designed in California★★★★★5-star reviews on Amazon
$75.00
/
Shipping calculated at checkout.

In stock · ships free from Amazon with tracking

  • Free shipping
  • Heavy galvanized steel
  • Pipe hardware included
  • Bolt on, no welding
Will it fit your pole?

Fits 2" pipe (2 3/8" outside diameter). One cap per pole connects 2 to 20 poles into a multi-pole array.

Check your pipe size

★★★★★“Solid, rugged and handles the Northeast weather great. I have no issues with its quality or dependability!! Works beautifully and adjusts easily.”Glenn B. · Verified Amazon purchase
Shipped by Amazon. Every order ships free from Amazon fulfillment centers with tracking. Prime members can check out with Buy with Prime for Prime delivery.

Prefer to order on Amazon? BUY ON AMAZON

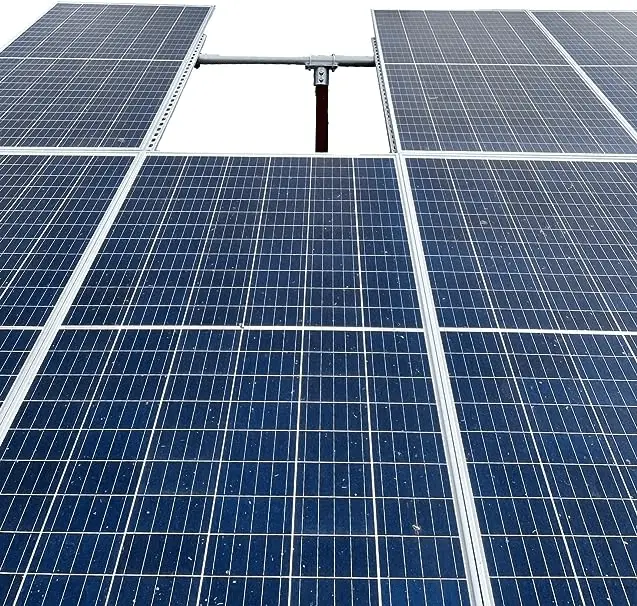

Bolt-on array top cap for 2" nominal (2 3/8" OD) ground pipe. Put one on each pole to build a DIY ground mount solar array.

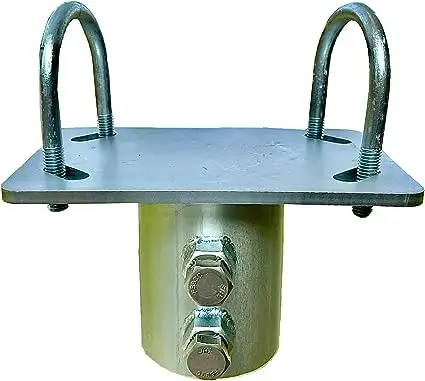

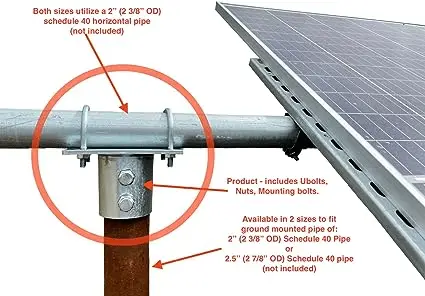

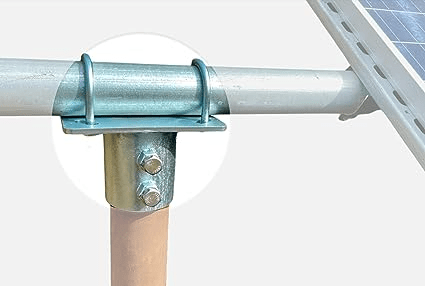

  • Cross pipe: holds 2" (2 3/8" OD) cross pipe with two 3/8" U-bolts.
  • Attaches with two set bolts to the ground pipe. Set bolts and U-bolts included to attach the cap to your pipes. Hardware to attach the panels is not included.

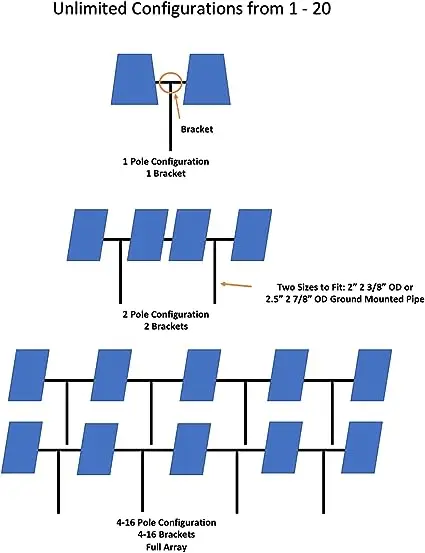

  • Build any size array: one cap per pole, from 2 poles for a small array up to 20 poles for dozens of panels.
  • Heavy-duty galvanized steel, zinc coated for outdoor use.
  • Bolt-on, no welding. Works with schedule 40/80 galvanized pipe or oilfield pipe when the OD matches.

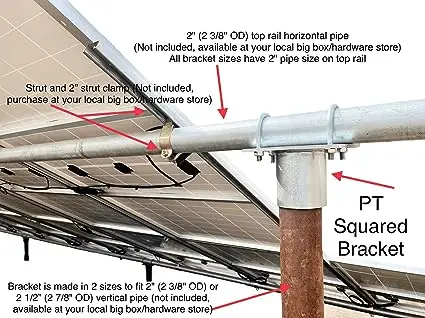

You supply the ground pipe, 2" cross pipe, concrete and panel rails. The off-grid array build guide has the full parts list.

Designed in California by an off-grid family. Ships fast with Prime when you check out with Buy with Prime.

Which size do I need?

Measure the outside diameter (OD) of your ground pipe and match it below. Your size is highlighted.

PipeODSingle poleMulti-pole array
2"2 3/8"2"-3" mount2" top cap
2.5"2 7/8"2"-3" mount2.5" top cap
3"3 1/2"2"-3" mount—
4"4 1/2"4" mount—

Need help choosing? Read the pipe mount guide or compare mount options.

Shipping & returns

Free shipping on every order, no minimum.

Orders are packed and shipped by Amazon from their fulfillment centers. You get a tracking email as soon as it ships. Prime members who check out with Buy with Prime get Prime delivery.

Returns: see our refund policy.

  • Bolt on, no weldingFits standard pipe
  • Heavy galvanized steelZinc coated, built to last
  • Pipe hardware includedU-bolts and bolts to mount on your pipes
  • Designed by off-griddersFamily business, California

Installation

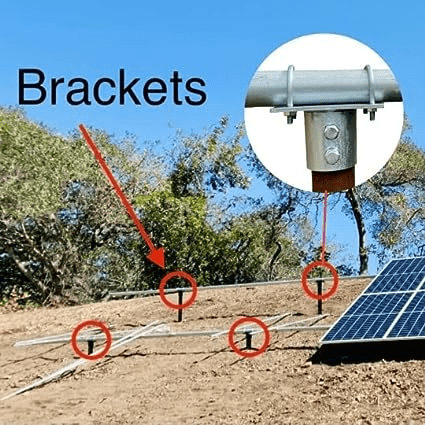

How to build a ground mount with top caps

  1. 1

    Lay out your poles

    Mark a straight line of ground pipe positions, spaced to fit your panels.

  2. 2

    Set the ground pipes

    Set 2" or 2.5" pipe in concrete at the same height. Follow local codes for depth.

  3. 3

    Cap each pole

    Drop a top cap on each pipe and tighten the set bolts.

  4. 4

    Run cross pipe & mount panels

    U-bolt the 2" cross pipe across the caps, add rails and bolt on your panels.

5-star reviews

What buyers say on Amazon

★★★★★
This is a solid piece of hardware! … This bracket is heavy duty. It's just what we needed for our project. We were so impressed that we ordered a second one and will likely order more as we expand the project.
Michelle C
★★★★★
I used these for a ground-mount solar panel array. It slid over the post, which was cemented into the ground. The U-bolts work well and are grade 8. The notches for the bolts to go through are conveniently cut out so that it doesn't need to be exact in order for it to attach.
Travis M.
★★★★★
This thing is solid!! I have it connected to a 410 watt solar panel and it allows me to tilt and turn the panel based on the time of year… It's heavy and solid.
G Longo · Verified Purchase
★★★★★
The plan is to mount 4 300 watt solar panels to it. This mount will easily handle that.
WRH

FAQ

Array top cap questions

How does shipping work?

Shipping is free. Amazon packs and ships every order from its fulfillment centers and emails you tracking. Prime members can check out with Buy with Prime for Prime delivery.

How many top caps do I need?

One per ground pipe. A small array might use 2, a large one up to 20.

Which size fits my pipe?

Measure the outside diameter (OD). 2 3/8" OD is 2" pipe; 2 7/8" OD is 2.5" pipe.

Can I use oilfield pipe?

Yes, as long as the outside diameter matches. Schedule 40/80 galvanized pipe also works.

What else do I need to buy?

The cap comes with U-bolts and set bolts for the pipes only. You also need ground pipe, 2" cross pipe, concrete, panel rails and hardware to attach your panels. All are available at hardware or big box stores. Our build guide has a full parts list.

Complete your setup

Only need a few panels on one pole?

A top of pole mount holds up to 6 panels on a single pipe.

Shop top of pole mountsCompare options
