Array top cap
2" Pipe Array Top Cap
- Fits 2" (2 3/8" OD) ground pipe
- Build arrays from 1 to dozens of panels
- Set bolts + two 3/8" U-bolts for the pipes included
DIY ground mount solar
Solar Array Top Caps for DIY Ground Mounts
Build your own ground-mounted solar array with galvanized pipe from your local hardware store. Cap each pole, run cross pipe, add panels.
- Fits 2" (2 3/8" OD) or 2.5" (2 7/8" OD) ground pipe
- From 1 panel to dozens, on 2-20 poles
- Bolt on, no welding, pipe hardware included
Heavy duty, 5-star rated on Amazon
- Bolt on, no weldingFits standard pipe
- Heavy galvanized steelZinc coated, built to last
- Pipe hardware includedU-bolts and bolts to mount on your pipes
- Designed by off-griddersFamily business, California
Choose your size
Match the top cap to your ground pipe
Both sizes hold 2" (2 3/8" OD) cross pipe with two 3/8" U-bolts.
Array top cap
2.5" Pipe Array Top Cap
- Fits 2.5" (2 7/8" OD) ground pipe
- Build arrays from 1 to dozens of panels
- Set bolts + two 3/8" U-bolts for the pipes included

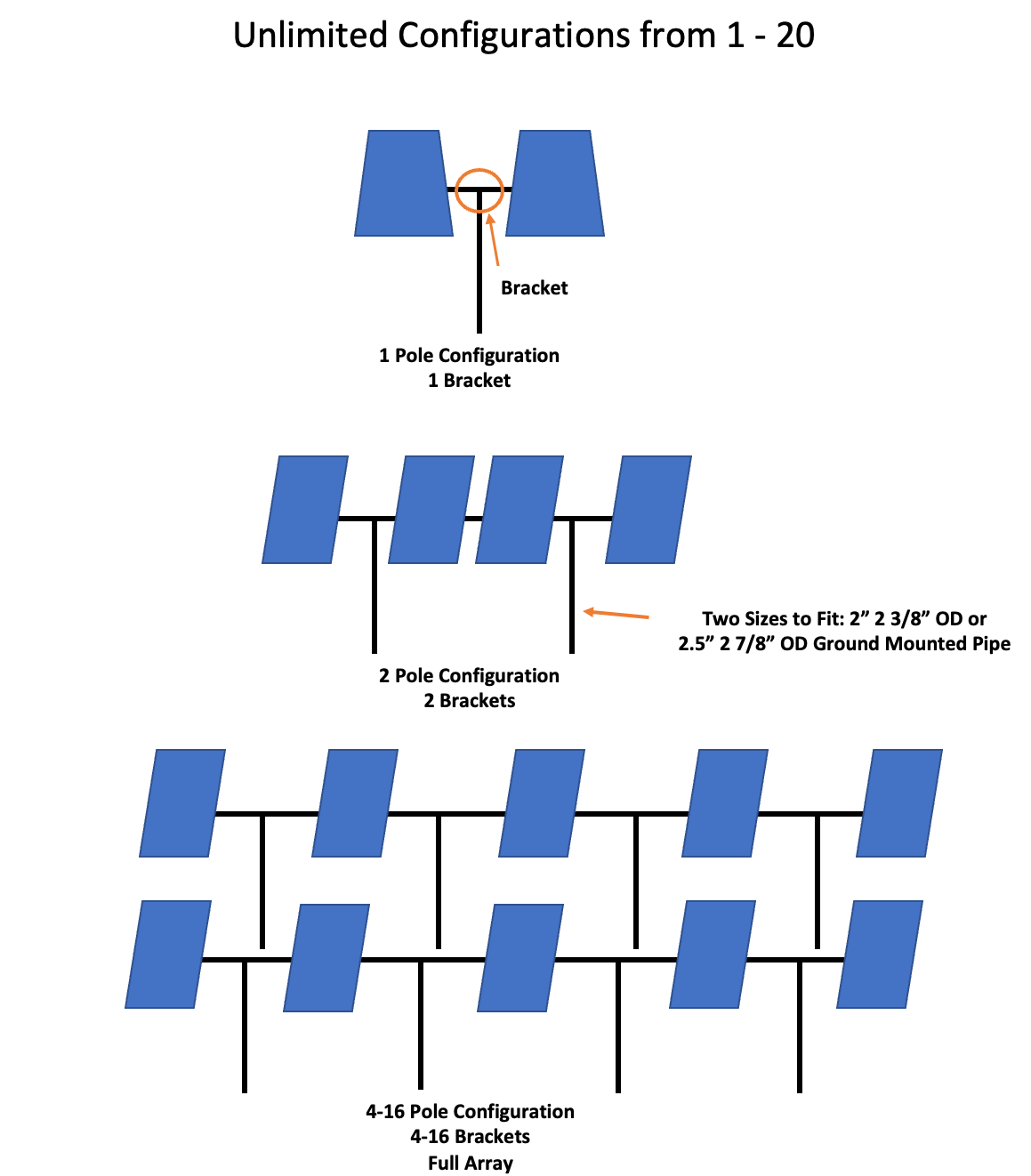

Unlimited configurations
Plan an array of any size
Top caps sit on top of each ground pipe and hold the horizontal cross pipe. Add poles to make the array longer and add cross pipe rows to make it taller.
- Small: 2 poles for a few panels
- Medium: 4-6 poles for a cabin or homestead
- Large: up to 20 poles for dozens of panels
Specs
Array top cap specifications
| Spec | Detail |
|---|---|
| Ground pipe | 2" (2 3/8" OD) or 2.5" (2 7/8" OD), schedule 40/80 or oilfield pipe |
| Cross pipe | 2" (2 3/8" OD) pipe |
| Attachment | 2 set bolts to the ground pipe, two 3/8" U-bolts to the cross pipe |
| Material | Heavy duty zinc coated steel |
| Array size | 1 panel to dozens, on 2-20 ground pipes |
| Install | Bolt on, no welding |
In the field
See how the top caps go together

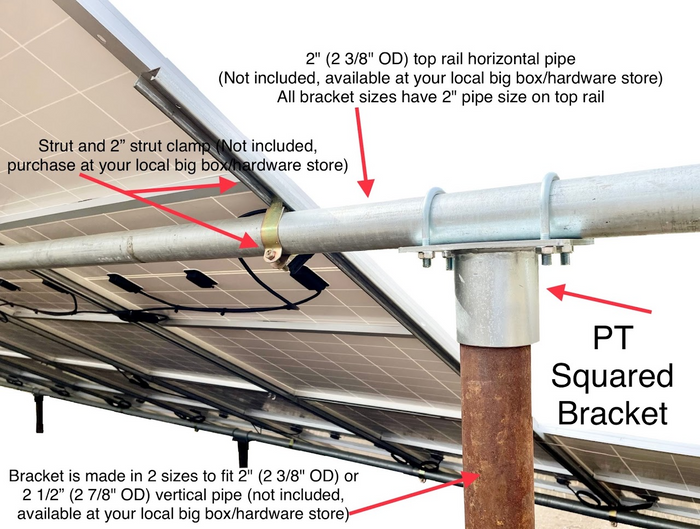

Top cap on the ground pipe
Cross pipe held by U-bolts

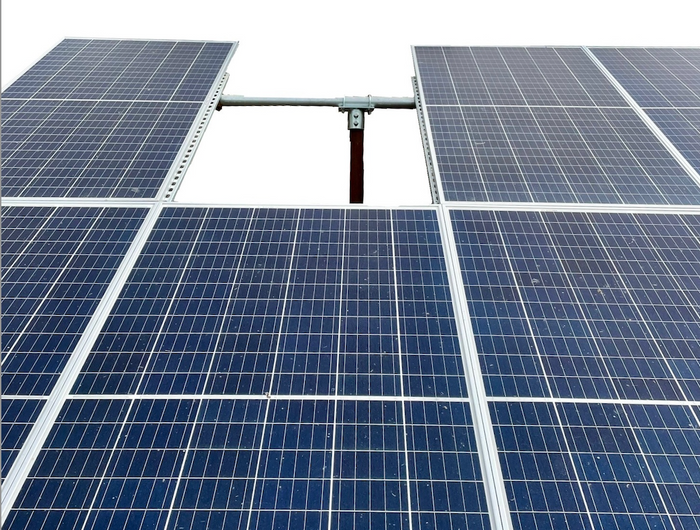

Finished ground mount
From the back
Installation
How to build a ground mount with top caps
-
1
Lay out your poles
Mark a straight line of ground pipe positions, spaced to fit your panels.
-
2
Set the ground pipes
Set 2" or 2.5" pipe in concrete at the same height. Follow local codes for depth.
-
3
Cap each pole
Drop a top cap on each pipe and tighten the set bolts.
-
4
Run cross pipe & mount panels
U-bolt the 2" cross pipe across the caps, add rails and bolt on your panels.
5-star reviews
What buyers say on Amazon
★★★★★
Quick availability & delivery. Seller provides everything needed and the quality is excellent. Galvanized steel will last a long time.
★★★★★
This bracket is HEAVY! Welds and quality are impressive. Very happy with this bracket!
★★★★★
The welds are professional... no sharp edges or points. I'd like to see more products from SolarPanelPoleMount.com.
★★★★★
The components are thick zinc coated steel, very heavy duty and will definitely not bend or break. All hardware was included. It just bolts to the top of a pipe, very easy.
FAQ
Array top cap questions
How many top caps do I need?
One per ground pipe. A small array might use 2, a large one up to 20.
Which size fits my pipe?
Measure the outside diameter (OD). 2 3/8" OD is 2" pipe; 2 7/8" OD is 2.5" pipe.
Can I use oilfield pipe?
Yes, as long as the outside diameter matches. Schedule 40/80 galvanized pipe also works.
What else do I need to buy?
Ground pipe, 2" cross pipe, concrete, and panel rails. All are available at hardware or big box stores. Our build guide has a full parts list.
Only need a few panels on one pole?
A top of pole mount holds up to 6 panels on a single pipe.
